Quansheng UV-K5(8) Amateur Radio NOAA Emergency Weather Receiver; IC Certified.

Quansheng UV-K5(8) Amateur Radio NOAA Emergency Weather Receiver; IC Certified.

$52.00 USD
$52.00 USD
Sale Sold out
Shipping calculated at checkout.
NOTICE: This radio transmits on Amateur Radio bands only. A valid Amateur Radio license is required. Not for commercial use. Cannot be programmed to FRS/GMRS/Marine or other commercial frequencies.

Quansheng UV-K5(8) Amateur Radio

Professional dual-band handheld with NOAA Emergency Weather Receiver. Clear audio, long-range performance, and dependable build—ideal for licensed ham operators and emergency preparedness.

Frequency Range

  • 144–148 / 430–450 MHz (Tx / Rx)

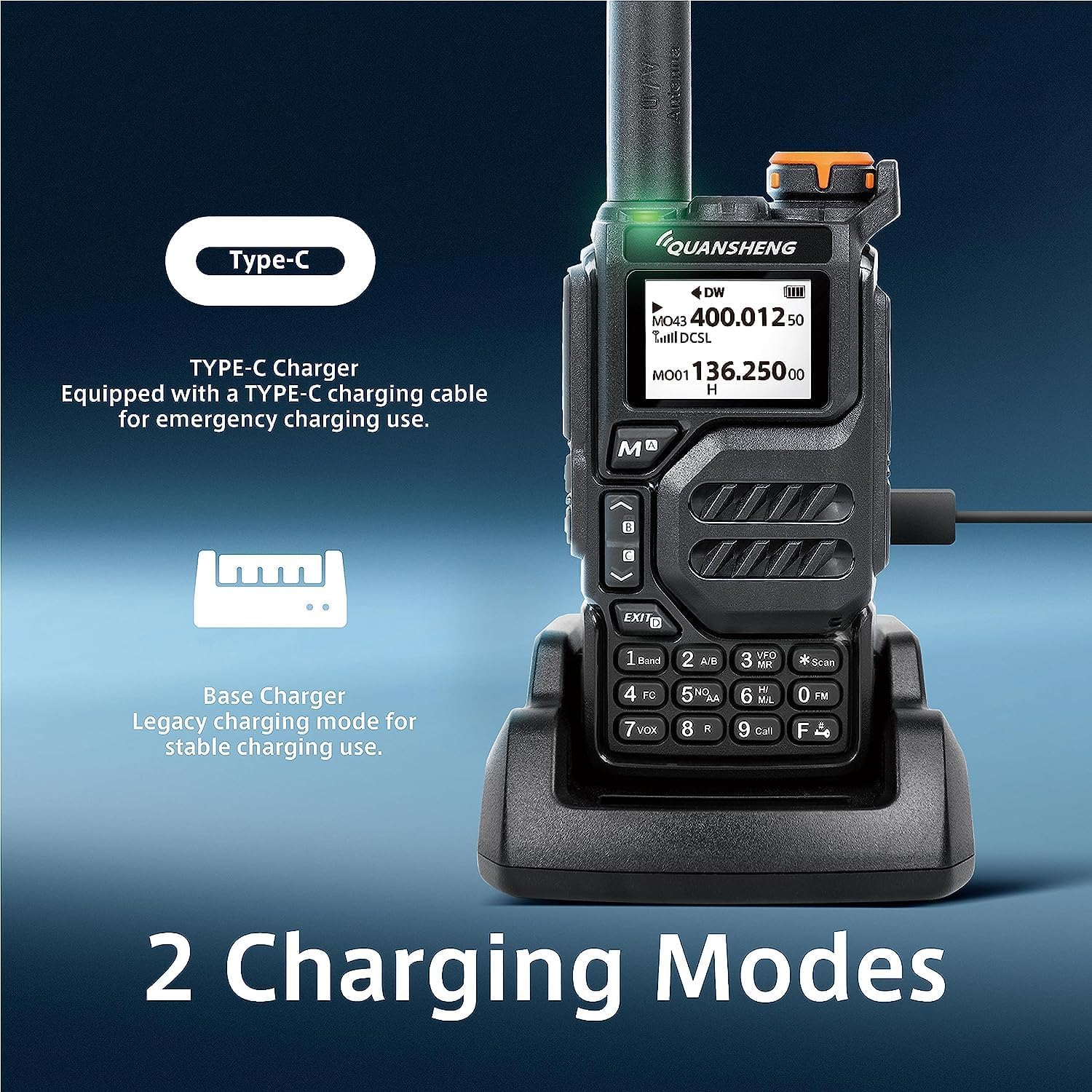

NOAA Weather Receiver CTCSS/DCS Privacy Codes* DTMF 10-Group Scrambler Emergency Alert Type-C / Base Charging Multi-Scan One-Key Call Channel Flashlight 200 Channels H/M/L Power Wide/Narrow Band

*Privacy codes help reduce channel chatter; they are not encryption.

UV-K5(8) feature overview
Quick to start, clear audio, dependable build for everyday use.

Fast copy one channel, frequency-counter mode for certain devices, wireless radio replication. IC ID: 30518-UVK5.

Wireless replication and quick copy
Display and control layout
GENERAL SPECIFICATIONS
Number of Channels 200
Number of FM Radios 16
Frequency Stability ±1 ppm
Size 115 × 60 × 37.5 mm
Weight 234 g
Operating Temperature -20 ℃ ~ +60 ℃
Antenna Impedance 50 Ω
Modulation Mode FM: 11K0F3E (12.5 kHz), 16K0F3E (25 kHz)
NOAA Channels 10
Battery Capacity 1600 mAh
RECEIVE (RX)
Reference Sensitivity FM (12 dB SINAD) — F1 (50–76) −121 dBm; F2 (108–135.9975) −121 dBm;
F3 (136–173.9975) −123 dBm; F4 (174–349.9975) −123 dBm;
F5 (350–399.9975) −123 dBm; F6 (400–469.9975) −123 dBm; F6 (470–599.9975) −121 dBm
WFM (20 dB SINAD) — 76–108: −110 dBm
AM (10 dB S/N) — 108–135.9975: −113 dBm
Audio Power ≥ 0.5 W
Audio Distortion ≤ 10%
TRANSMIT (TX)
Frequency Band VHF: 144–148 MHz    UHF: 430–440 MHz
Transmitting Power ≤ 5 W
Emission Current ≤ 1.5 A
Max Frequency Deviation ≤ 5 kHz (25 kHz), ≤ 2.5 kHz (12.5 kHz)
Modulation Distortion ≤ 5%
Spurious Emission ≤ 7.5 µW
Adjacent Channel Power 70 dB (25 kHz), 60 dB (12.5 kHz)
Residual Modulation 40 dB
